Solid oil waste treatment

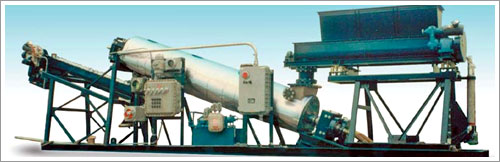

Indirect heat Thermal-Desorber system

KMT International Inc presents unique Indirectly-fired thermal extractor system (Indirect heat thermal desorption system) uses indirect thermal desorption to recover and recycle hydrocarbon contaminated solids for safe on-site disposal. This is a portable system designed to thermally remove hydrocarbons from solids. The hydrocarbons are extracted pyrolitically and recovered as oil and/or fired to heat the process.

System can process various materials such as:

• Hydrocarbons contaminated soil (results of oil or fuel spillages, etc);
• Solid fraction after processing sludge from oil ponds or lagoons on centrifuge;
• Sediments from oil and bunker oil tanks;
• Spend catalysts used in oil refineries, etc.

System can be supplied in two major configurations: mobile or stationary. Mobile system designed on two tracks and contains power generator which provides electric power required for system operation. System can be erected on site during 4-5 working days. Stationary unit will require external power supply connection and building for system set up. Both systems are explosion and fire proof.

Complete system consists of several units. Major units includes: material preparation unit, thermal extraction unit, environmental control unit and quench condensing scrubber.

Proposed thermo desorption system can process material with following parameters:

• Hydrocarbons, up to 25% by weight;
• Water, up to 30% by weight.

Hydrocarbons in processed material: below 0.5% by weight. System performance: mobile design - up to 2 metric ton/hour; stationary design - up to 10 metric ton/hour.

KMT International Inc provides full service including:

• Engineering design and ready to start equipment supply.
• Warranty and after warranty technical support and service.
• System startup service and personal training.
