Thermal Drying Systems

We offer Thermal Drying Systems which can be used to process various type of materials. Proposed drying systems significantly reduce moisture content, thereby producing a desirable, and often sellable, end product.

Thermal Drying of materials is a well-proven technology that reduces the volume and weight of solids. Dried products are more easily handled, stored and transported drastically reducing cost to customers. Drying materials makes it easier than ever to meet stringent environmental regulations and in many cases, can provide a sustainable source of energy to be used.

 We would be happy to answer any questions you might have. Send us your request and we will guide you through all technical aspects pertaining to your project in order to offer you the best solution possible. We will help you to choose right equipment to fulfill your technical and economical requirements.

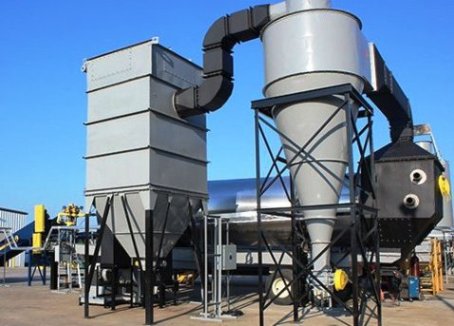

Rotary Dryer

Rotary Dryers are reliable, durable, economical to run and efficient. The rotary dryer sturdy construction makes it a reliable solution for drying a wide range of materials. We offer two types of Rotary Drying Systems:

DIRECT FIRED DRYING SYSTEM - Mostly used for inorganic materials or materials with high moisture content.

Such system can be designed in a parallel or counter-current flow configuration. In a parallel, or co-current, flow configuration, the hot gases and the product enter the dryer at the same end.

The wet material comes into contact with the hot gas at its highest temperature, resulting in the rapid evaporation of surface moisture without overheating the product. In a counter-current configuration, the hot gas stream enters the kiln on the opposite end as the materials, and the dry product comes into contact with the gas at its lowest temperature.

INDIRECT FIRED DRYING SYSTEM - Such system are used when material has to be dried in controlled oxygen-lean environment. Material is heated by several burners mounted trough isolated jacket. materials with low density and fine particles are mostly suited for this type of dryers.

Proposed rotary dryers are equipped with specially designed flights to maximize heat transfer between the product and the hot gas stream. Rotary dryers are able to process and remove moisture from a variety of materials, from fertilizer to minerals to industrial waste.

They are excellent for processing inorganic materials, such as aggregate, sand and foundry waste, at high process rates. Versatile and purpose-built to dry a wide variety of materials, our direct fired rotary dryers shower the material with a hot gas stream from end to end.

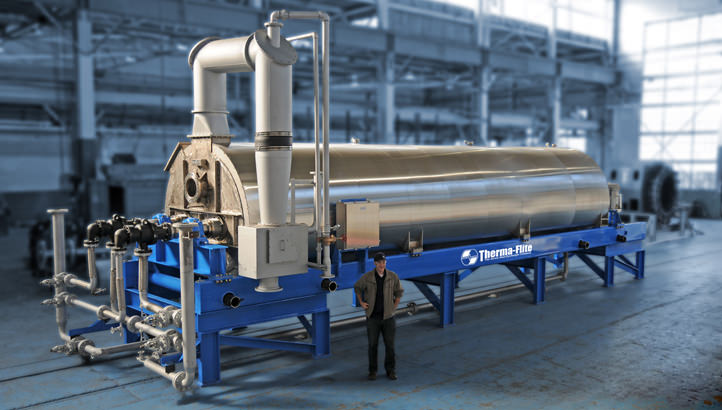

Holo-Scru Dryer

Holo-Scru drying system for your treatment plant is essential to maximizing cost efficiency and reducing environmental impact. The dryer system eliminates pathogens and reduces moisture content to 90% and volume to typically 20% or less during biosolids drying. The Holo-Scru is a simple, easy to maintain dryer system with a small footprint. The fully automated system ensures exceptional product quality and safety.

System effectively drying digested, undigested primary, waste activated sludge and mixes of these sludges (as is common for regional facilities). The design of the Holo-Scru includes features to continuously remove buildup from the heat transfer surfaces. The system also eliminates any large clumps from building and passing through the system via a series of cutters that break up and homogenize the particle size at each stage of the rotor.

The heat energy for drying is indirect, created by thermal fluid circulated through the rotor, flitting and the outer jacket of the drying chamber in a closed loop. The drying process operates under a slight negative pressure in a sealed chamber.

Full service provided

KMT offers comprehensive service, including:

  • Engineering, design and equipment supply;
  • Customer's sample pilot teting;
  • System startup service and personalized training;
  • Warranty and after warranty technical support.
